Passengers must always be seated in seats with
seat belts fastened at all times when the vehicle is in motion. Never allow passengers
or pets to ride in the cargo bed, even with the tonneau cover closed. Doing so can result in serious injury or death.
Although the tonneau cover protects contents from the majority of water during rain, snow, etc., it does not
make the cargo bed waterproof. Water ingress and/or
condensation can occur. Therefore, do not store items that can be damaged by water under
the tonneau cover. Store water-sensitive items in the cab, the Under Bed Compartment, or the
Powered Frunk.
Warning
Never fill, store, or transport volatile solvents, chemicals, or liquids anywhere in the cargo bed or the under bed compartment. Doing so can cause spills, or allow fumes to accumulate, resulting in damage, serious injury, or death.
Accessing the Cargo Bed

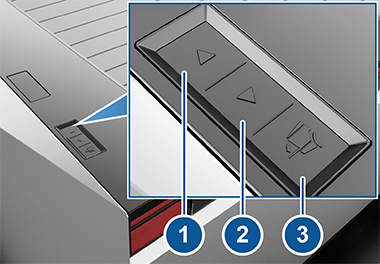

When Cybertruck is parked, use these exterior switches to access the cargo bed:
Tonneau Open - Fully press and
release to fully open the tonneau cover. Press a second time to pause
the cover. To open the tonneau cover partially, press lightly and
release the button when desired.
Tonneau Close - Fully press and
release to fully close the tonneau cover. Press a second time to pause the cover. To close the tonneau cover partially, press lightly and release when desired.
Tailgate Open - Press to release the tailgate latch. The tailgate drops but integrated struts prevent it from falling forcefully.
Note
If the tonneau cover does not open or close when you
fully press and release the tonneau open or tonneau close button, respectively, you may
need to calibrate the tonneau cover. For more information, see Troubleshooting the Tonneau Cover. You can still press lightly to partially open or close the tonneau cover.
You can also use the mobile app and the touchscreen to open and close the tonneau cover. On the touchscreen, touch Controls > Tonneau.
CAUTION
Do not drop anything
onto the tonneau cover or place objects on top that could fall off. Avoid allowing
objects or debris to enter the tracks or interfere with the motors.

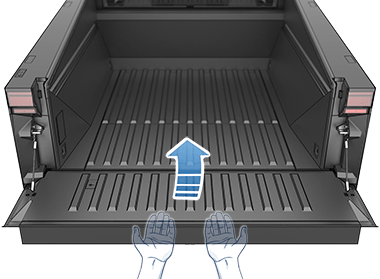

To close the tailgate, first remove all objects and
ensure the hinge area is free of debris. Then lift the tailgate from the bottom with both hands
and press it firmly against the cargo bed to ensure it latches into
position. Pull the closed tailgate toward you to ensure it is fully
latched into position. If the tailgate is open or unlatched, the
touchscreen displays a message.
Warning
When closing the tonneau cover, keep hands and objects away
from the tonneau cover tracks. Failure to do so can
cause damage or injury.
Warning
When closing the tailgate, keep hands and objects away
from the perimeter, the hinges, etc. Failure to do so can cause damage or serious
injury.
Troubleshooting the Tonneau Cover
The tonneau cover does not open or close when:
Cybertruck is locked, or is not in Park.
There is an obstacle blocking the tonneau cover from closing. In this case, remove the object and try again.
Warning
Although the tonneau cover is designed to stop moving if it detects an obstacle when closing, do
not rely on the tonneau cover to prevent damage or injury.
Cybertruck has no low
voltage power. In this case, it is necessary to open the powered frunk before attempting to jump start Cybertruck. For more information, see If Vehicle Has No Power.
Note
The tonneau cover locks into place (whether opened or closed) when Walk-Away Door Lock is
enabled. Always double check that the tonneau cover is closed, or intentionally left open, before walking away from your vehicle
(see Walk-Away Door Lock for
more information). Car Left
Open Notifications may not notify you if the tonneau cover is left open.
If the tonneau cover does not open or close as
expected:
Make sure that Cybertruck is unlocked and in
Park.
Wait several minutes and then try again.

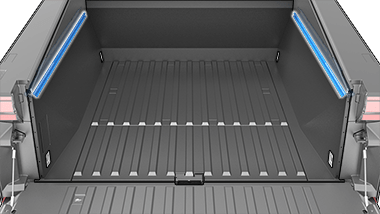

Inspect the tracks to ensure
there's no debris or object in the way of the tonneau cover.
Calibrate the tonneau cover:
Touch Calibrate
on the touchscreen (on the exterior view of the vehicle, where you would
normally touch to open or close the tonneau cover) and follow the
onscreen instructions.
Note
The Calibrate option only appears on the touchscreen when
the tonneau cover needs to be calibrated.
Or, to calibrate the
tonneau cover manually: Press and hold the Open button (1) until the
cover is fully open and wait for it to stall. Then, press and hold the
Close button (2) until the cover is fully closed and stalled.
If the tonneau cover still does not function as expected, schedule a Service
appointment.

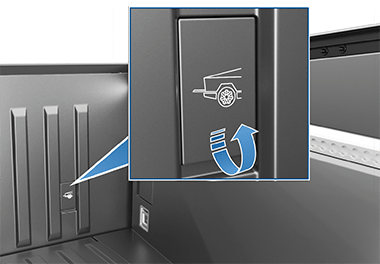

Tailgate Emergency Release
An interior release, located on the inside of the tailgate, allows a person trapped in the cargo bed to open the tailgate when Cybertruck is parked.
To use the emergency release, flip the cover upward to access the pull strap, then pull the strap firmly toward you.
Warning
People should never be
inside the cargo bed when the Cybertruck is moving. Never shut the tailgate when a person is inside.

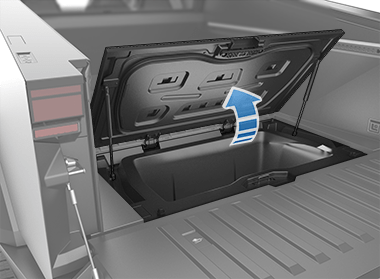

Under Bed Compartment
The cargo bed features a sealed storage
compartment. To open:
Once open, integrated struts hold the cover in the raised position.
The under bed compartment features a drain plug that allows you to use it to store water and/or ice. To open the drain plug, simply turn it counter-clockwise and pull it up. Remember to re-install the drain plug once the compartment is fully drained.
To close the under bed compartment, push it fully downward until the latch engages.
CAUTION
Take care when closing the lid to the under bed storage compartment. Slamming the lid shut may cause damage or injury.
CAUTION
Do not load more than
220 lb (100 kg) in the under bed compartment. Doing so can cause damage.
Securing Cargo

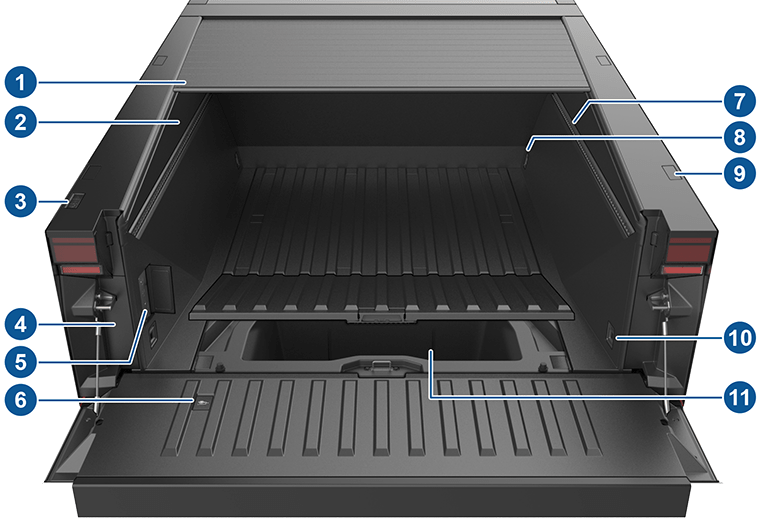

Cybertruck features multiple options that make it easy to secure cargo:
Two integrated L-track rails, running
lengthwise along the top of each side of the cargo bed are compatible with standard
fittings (not included) and provide multiple anchoring options.
Four tie-down anchors - one at each
bottom corner of the cargo bed.
CAUTION
Do not use the
tie-down anchors or L-tracks for towing. They are intended to secure cargo such as
a spare tire. See Towing a Trailer for more
information.
CAUTION
The maximum force between any two anchor points must not exceed 707
lb (320 kg). Doing so may cause damage.
Eight attachment anchor points, four
distributed on each side above the cab and on the rails of the cargo bed. These anchor points are designed
to accommodate accessory racks. To access the anchor points, press down on the
inboard side of the covers to pivot them to their open position. To close the covers,
carefully pull the cover down towards the outboard side of the vehicle until they are
flush with the vehicle trim.
Warning
Before driving while carrying objects in the cargo bed, always ensure the cargo is evenly distributed and adequately secured to prevent it from shifting or falling onto a roadway. Failure to do so can compromise vehicle stability, damage the cargo bed, and cause serious personal injury or death to passengers and other road users.
