Steering Wheel

Adjusting Steering Wheel Position

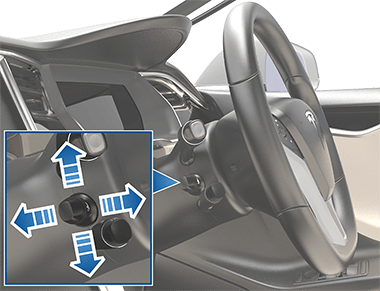

Adjust the steering wheel to the desired driving position by moving the control on the left side of the steering column. Using this control, you can move the steering wheel forward and backward and up and down.

Steering wheel control with a zoombox with blue arrows pointing up, down, left, right
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Do not make adjustments while driving.

Adjusting Steering Weight

You can adjust the feel and sensitivity of the steering system to suit your personal preference:

  1. On the touchscreen, touch Controls > Pedals & Steering > Steering Weight.
  2. Choose a steering option:
    • Light - Reduces the effort required to turn the steering wheel. In town, Model S feels easier to drive and park.
    • Medium - Tesla believes that this setting offers the best handling and response in most conditions.
    • Heavy - Increases the effort required to turn the steering wheel. When driving at higher speeds, Model S feels more responsive.

Using Left Steering Wheel Buttons

Use the buttons on the left side of the steering wheel to change radio stations, control media player volume, and to choose what displays on the left side of the instrument panel (whenever the Navigation app is not displaying instructions).

Steering wheel left buttons with callouts
  1. Next

    If you are listening to local or satellite radio and you have defined more than one radio preset, press to play the next preset in the radio band that is currently playing. If you have not defined more than one preset, press to go to the next available frequency.

    If you are listening to Internet radio, or to an audio file on a connected Bluetooth or USB device, press to skip to the next song or station.

    If you have more than one favorite defined, press and hold to cycle through favorites.

  2. Scroll Button
    • To adjust the media volume, roll up or down.
      Informational PurposesAn informational icon, calling your attention
      Note
      The scroll button adjusts the volume for media, navigation instructions and phone calls based on what is currently in use. As you adjust volume, the instrument panel displays the volume level and whether you are adjusting volume for media, navigation or phone.
    • To mute the media volume, or to pause/play an audio file, tap the scroll button.
    • To choose what displays on the left side of the instrument panel, hold the scroll button briefly until the available options are displayed. Roll the scroll button to choose Empty, Car Status, Clock, Media, Energy, Trips, Suspension, etc. When the option you want is highlighted, tap the scroll button.
      Informational PurposesAn informational icon, calling your attention
      Note
      The option you choose to display using the left scroll button is retained until you manually change it.
      Informational PurposesAn informational icon, calling your attention
      Note
      Car status displays information such as status of doors and trunks, and on newer model vehicles, the tire pressure measurements.
  3. Previous

    Same as described above for Next, except it skips to the previous song or station. If you have more than one favorite defined, press and hold to cycle through favorites.

Informational PurposesAn informational icon, calling your attention
Note
Regardless of how you customize the left side of the instrument panel, it automatically changes to display navigation instructions (if applicable), or to let you know if a door or trunk is open when Model S is in Drive or Reverse.

Using Right Steering Wheel Buttons

Use the buttons on the right side of the steering wheel to access call options while on a phone call, to choose what displays on the right side of the instrument panel, to adjust Model S features, and to use voice commands.

Informational PurposesAn informational icon, calling your attention
Note
Whenever you receive or make a phone call, the right side of the instrument panel automatically displays call options to help you easily handle phone calls on your Bluetooth-connected phone.
Steering wheel right buttons with callouts
  1. Press to use a voice command to call a contact or navigate. When you hear the tone, speak your command. For details, see Voice Commands.

  2. Scroll Button
    • During a phone call, touch the scroll button to display call options that allow you to perform an action on the call.
    • Roll the scroll button to adjust the most recently used feature from the feature list (see Menu button).
    • To choose what displays on the right side of the instrument panel, hold the scroll button briefly until the available options are displayed. Roll the scroll button to choose Empty, Car Status, Clock, Media, Energy, Trips, Suspension, etc. When the option you want is highlighted, tap the scroll button.
      Informational PurposesAn informational icon, calling your attention
      Note
      Car status displays information such as status of doors and trunks, and on newer model vehicles, the tire pressure measurements.
      Informational PurposesAn informational icon, calling your attention
      Note
      The option you choose to display using the right scroll button is retained until you manually change it.
    • To restart the touchscreen, hold down both scroll buttons for approximately five seconds. See Restarting the Touchscreen or Instrument Panel.
    • Suspension. Display a real-time visualization of how the suspension system is dynamically adjusting each wheel’s damping to account for changing road conditions. Roll the scroll button to choose Suspension and then press the scroll button. See Air Suspension.
  3. Menu button

    Press to display a menu that allows you to control the following Model S:

    • Temperature. Roll the scroll button to change the driver side temperature, or press the wheel to turn the climate control system on and off.
    • Fan Speed. Roll the scroll button to adjust the speed of the fan used to cool or heat the cabin.
    • Display Brightness. Roll the scroll button to change the brightness level of the displays, or press the wheel to restore default settings.
    • Sunroof (if equipped). Roll the scroll button to adjust the position of the sunroof.
    • Recent Calls. If your phone is paired to Model S, roll the scroll button to view your recent calls. Press the scroll button to call the contact that's displayed. To pair your phone, see Pairing a Phone or Bluetooth Device.
    • Contacts. If your phone is paired to Model S, roll the scroll button to navigate to contacts in your phone. Your contacts are listed alphabetically by their last name. To ensure Model S can access your contacts, see Importing Contacts and Recent Calls.

Press the menu button again to close the feature list.

Heated Steering Wheel

If Model S is equipped with the cold weather package, you can warm up the steering wheel by touching climate controls on the touchscreen (see Operating Climate Controls). When turned on, radiant heat keeps the steering wheel at a comfortable temperature.

Informational PurposesAn informational icon, calling your attention
Note
Depending on date of manufacture, your Model S may not include a heated steering wheel, even when equipped with the optional cold weather package.

Horn

To sound the horn, press and hold the center pad on the steering wheel.

Steering wheel with an arrow pointing to the center pad.
