Interior

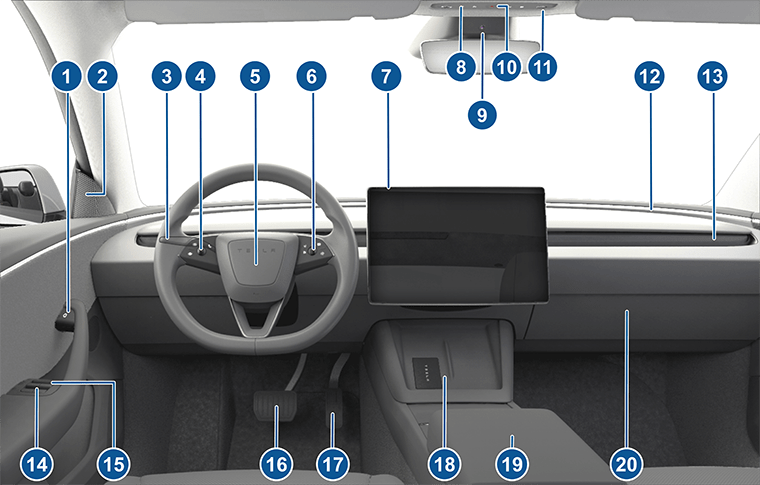

Interior view of front cabin with callouts
  1. Door open button (Opening Doors from the Interior)
  2. Blind spot warning light (Blind Spot Warning Light)
  3. Left scroll wheel (Left Scroll Wheel (Multifunction))
  4. Horn (Horn)
  5. Right scroll wheel (Right Scroll Wheel (Autopilot))
  6. Touchscreen (Touchscreen)
  7. Secondary drive mode selector (P R N D) (Shift Using the Overhead Console)
  8. Cabin camera (Cabin Camera)
  9. Hazard warning flashers (Hazard Warning Flashers)
  10. Dome lights (Lights)
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Model 3 is equipped with an in-cabin sensor located near the front passenger dome light to ensure certain vehicle and safety components are working properly. Do not block or obstruct the sensor. Doing so may cause inaccurate readings, such as for occupant detection, parking brake engagement, vehicle display settings, etc.
  11. Accent lights (Lights)
  12. Climate control vent (see Operating Climate Controls)
  13. Power window switches (Windows)
  14. Manual door release (Opening Doors from the Interior)
  15. Brake pedal (Braking and Stopping)
  16. Accelerator pedal (Regenerative Braking)
  17. Wireless phone charger (Wireless Phone Chargers) and key card reader (Keys)
  18. Center console (Center Console)
  19. Glovebox (Glovebox)

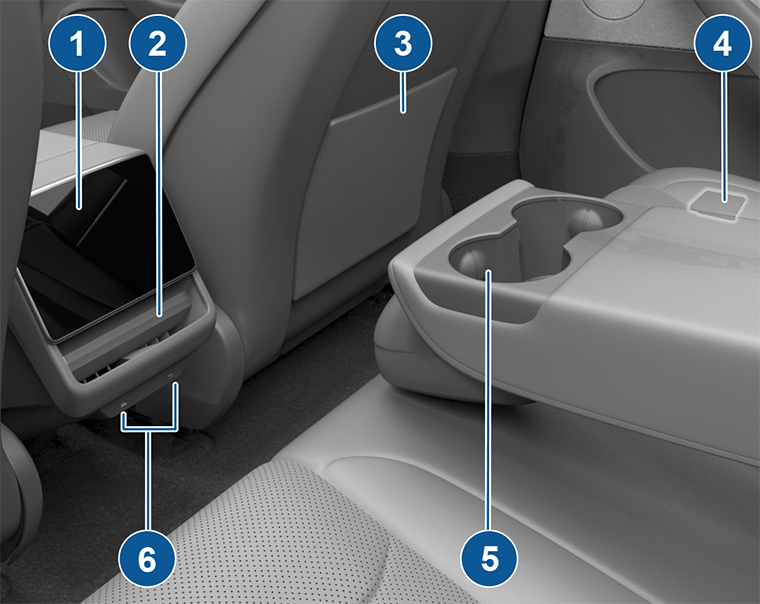

Interior view of rear cabin with callouts
  1. Rear touchscreen (Rear Touchscreen)
  2. Adjustable climate control vents (Operating Climate Controls)
  3. Seat pocket
  4. Rear door manual release (Opening a Rear Door with No Power)
  5. Cup holders (Rear Console)
  6. USB ports (USB Ports)
