Vehicle Loading

Vehicle Labeling

It is important to understand your vehicle's original tire sizes and pressures, and the GVWR (Gross Vehicle Weight Rating) and GAWR (Gross Axle Weight Rating). This information can be found on two labels attached to Model X.

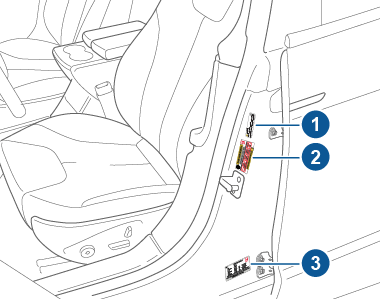

Labels on the center door pillar indicating how much weight the vehicle can carry

Towing label (if equipped)
Tire and Loading Information Label
Vehicle Certification label

Note

Towing capability is available only if Model X is equipped with the Towing Package.

Warning

Overloading Model X has an adverse effect on braking and handling, which can compromise your safety or cause damage.

CAUTION

Never store large amounts of liquid in Model X. A significant spill can cause electrical components to malfunction.

Towing Label

Note

Depending on date the vehicle was manufactured, Model X may or may not have a towing label.

Towing capability is available only if Model X is equipped with the Towing Package. If equipped with the towing package, the Towing Label instructs you to refer to the owner's manual for tire pressures that should be used when towing a trailer. Do not use the tire pressures printed on the Tire Information Label. Instead, see the topic "Towing a Trailer" in the Driving section of the onscreen Owner's Manual.

Towing and high speed driving label, referring drivers to the owner's manual for tire inflation pressure requirements

Tire and Loading Information Label

The maximum number of occupant seating positions.
The maximum vehicle capacity weight.
The size of the original tires.
The cold inflation pressures for the original front and rear tires. These pressures are recommended to optimize ride and handling characteristics.

Label Format:

Never change this label, even if you use different tires in the future.

Note

If Model X is loaded to its full capacity, double check all tires to ensure they are inflated to their recommended pressure levels.

Warning

Tire pressures printed on the Tire and Loading Information label DO NOT APPLY to towing. When towing, tire pressures must be increased. For information about the tire pressures required when towing, see Towing and Accessories.

Vehicle Certification Label

The Vehicle Certification label provides:

GVWR - Gross Vehicle Weight Rating. The maximum allowable total mass of Model X. This is calculated as the weight of Model X equipped with the heaviest factory selectable options, all passengers, fluids, and cargo.
GAWR FRT and GAWR RR - Gross Axle Weight Rating for the front and rear axles. The GAWR is the maximum distributed weight that each axle can support.

CAUTION

To prevent damage, never load Model X so that it is heavier than GVWR or exceeds the individual GAWR weights.

Steps for Determining the Correct Load Limit

Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs.” on your vehicle's placard.
Determine the combined weight of the driver and passengers that will be riding in your vehicle.
Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
The resulting figure equals the available amount of cargo and luggage load capacity. For example, if the “XXX” amount equals 1400 lbs. and there will be five 150 lb passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs. (1400-750 (5 × 150) = 650 lbs.)
Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in Step 4.
If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle. Consult this manual to determine how this reduces the available cargo and luggage load capacity of your vehicle.

Warning

Trunks are the preferred places to carry objects. In a collision, or during hard braking and sharp turns, loose items in the cabin could injure occupants.
